After you create a new report or open an existing report, you are then able to design that report.



clip266

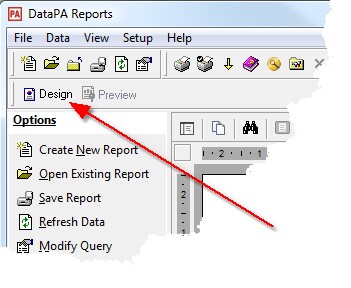

To change the report display to design mode, allowing you change the appearance of your report, select the Design button in the toolbar.

clip267

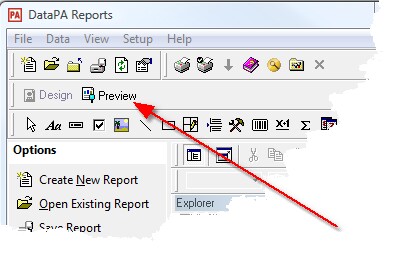

Whilst in design mode, you can return to preview mode, at any point to review how your changes have effected the appearance of your report by pressing the Preview button in the toolbar.

clip268

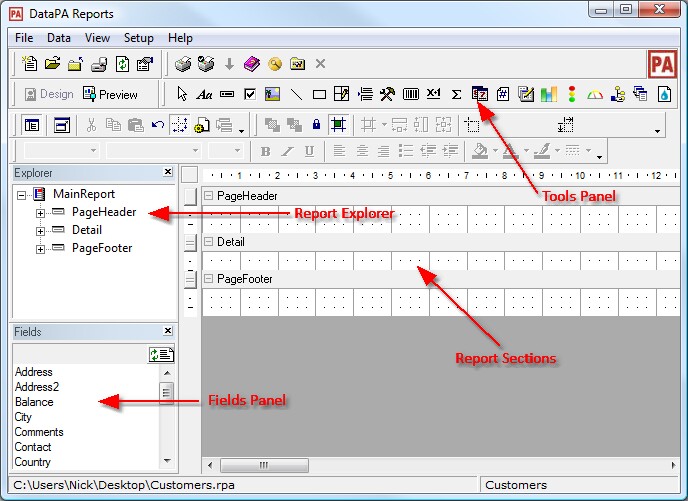

Report Sections

The report sections panel represents different sections of a report, to which you can add fields and items from the tools panel. The size of a section will effect the appearance of your report. Reports can contain the following sections:



Section

Description

Managed From

Detail Section

This section represents the details section of the report. Anything added to this section will be repeated for each row of data returned by the query.

Always present. Use section options to change the properties of this section.

Page Header

This section represents the page header of the report. Anything added to this section will be repeated at the top of every page of the report.

Use section options to add, remove or change the properties of this section.

Page Footer

This section represents the page footer of the report. Anything added to this section will be repeated at the top of every page of the report.

Use section options to add, remove or change the properties of this section.

Report Header

This section represents the report header. Anything added to this section will appear once at the top of the report.

Use section options to add, remove or change the properties of this section.

Report Footer

This section represents the report footer. Anything added to this section will appear once at the bottom of the report.

Use section options to add, remove or change the properties of this section.

Group Header

This section represents the group header. Anything added to this section will be repeated for each group in the specified grouping, and displayed above the group.

Use group options to add or remove this section. Use section options to change the properties of this section.

Group Footer

This section represents the group footer. Anything added to this section will be repeated for each group in the specified grouping, and displayed below the group.

Use group options to add or remove this section. Use section options to change the properties of this section.





Fields Panel

The fields panel displays all of the fields available in the query that can be added to your report.





Report Explorer

The report explorer allows you to view and select each report section and each object they contain.







Tools Panel

The tools panel allows you to add objects to your report. For more details see:



Adding fields to a report

Adding labels to a report

Adding checkboxes to a report

Adding images to a report

Adding lines to a report

Adding shapes to a report

Adding page breaks to a report

Adding ActiveX objects to a report

Adding barcodes to a report

Adding calculated fields to a report

Adding summary fields to a report

Adding date and time fields to a report

Adding page numbers to a report

Adding parameter values to a report

Adding charts to a report

Adding traffic lights to a report

Adding gauges to a report

Changing report group options

Changing report section options

Adding sub reports to a report

Adding watermarks to a report

Scripting
