Adding watermarks to a report

Top  Previous  Next



Watermarks allow you to add images to the background of your report. See below for details on how to add, modify and remove a watermark from your report.





Adding and modifying a watermark



Select the Watermark button from the Tools Panel.

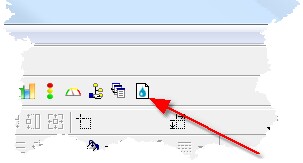

clip416



Select the image you want to appear as the watermark image for your report.



Select the alignment for your image.

Top - Aligns the image to the top and left.

Top Right - Aligns the image to the top and right.

Center (Default)  - Aligns the image to the center.

Bottom Left - Aligns the image to the bottom and left.

Bottom Right - Aligns the image to the bottom and right.

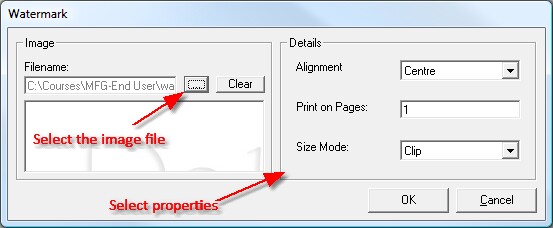

clip415

Select which pages you want the watermark to appear on. The sytanx can include a single page, page range or a combination of both. For example: 1, 5-8, 9, 10-12.

Select the size mode for your image.

Clip (Default)  - Clips the image.
Stretch  - Stretches the image to fill the print area.
Zoom  - Zooms in on the image.



Deleting a watermark



Select the Watermark button from the Tools Panel.

clip416



Press the Clear button, then press OK.

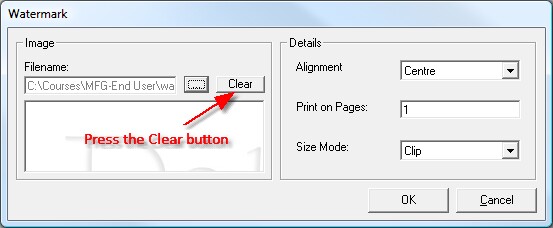

clip417
