Adding labels to a report

Top  Previous  Next



Labels are static text objects that can be added to your report. See below for details on how to add, edit and delete labels whilst in design mode in the report designer.





Adding a label

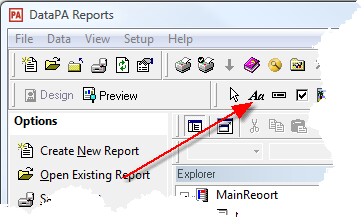

Select the Label button from the Tools Panel.

clip280

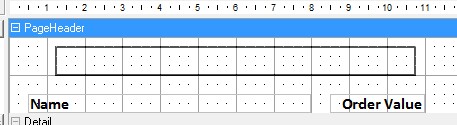

Draw the label on to a section of the report.

clip281

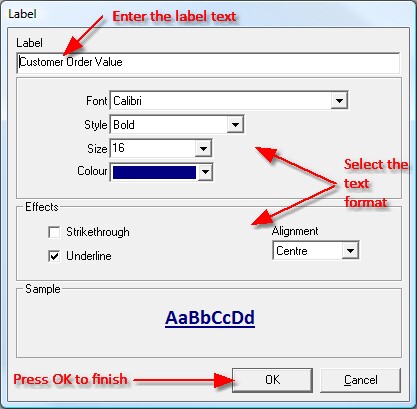

Enter the label text, select the required text formatting options (note the sample text at the bottom of the dialog box as you change the formatting options), and press OK to finish.

clip282

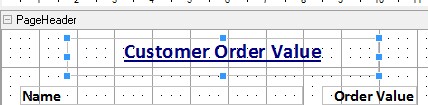

Resize the label as required.

clip283



Editing a label

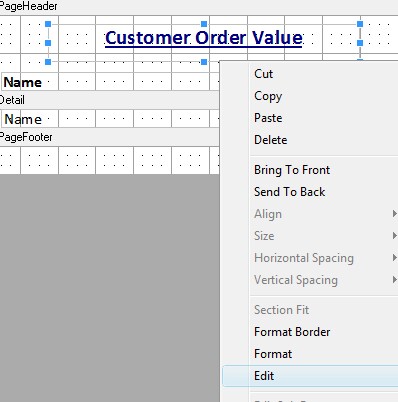

Select the label in the sections panel, press the right mouse button and select Edit from the drop down menu.

clip284



Deleting a label

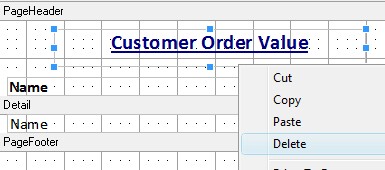

Select the label in the sections panel, then either press the delete key, or press the right mouse button and select delete from the drop down menu.

clip285
