Formating the border of objects

Top  Previous  Next


Many objects in the report designer, such as fields and labels, can be formatted with a border. Follow the steps below to format the border of objects in your report.



Opening the format border box

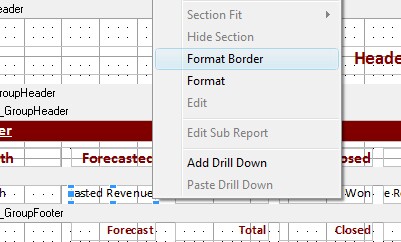

To open the Format Border Dialog Box, select the object that you want to format in the sections panel, press the right mouse button and select Format Border.

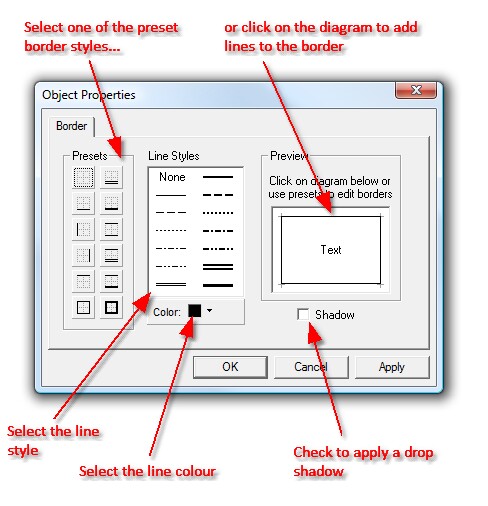

Specifying the border


Select the required border by either selecting one of the preset borders, or clicking on the diagram. Select the line style and colour for your border, and if you want a drop shadow, check the Shadow check box. Select OK or Apply to apply your changes.
