Gauge Editor Appearance

Top  Previous  Next

The Gauge Editor window Appearance tab allows you to specify the appearance of the gauge.



Follow the steps below to specify the appearance of your gauge;

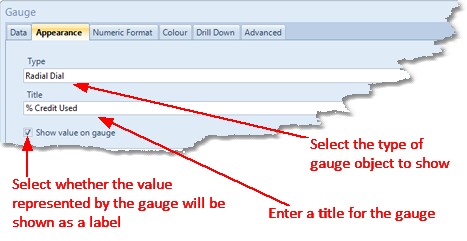

First, select the type of gauge object you wish to display, enter a title and select whether or not you wish the value represented by the gauge to be added as a label to the gauge.



clip760

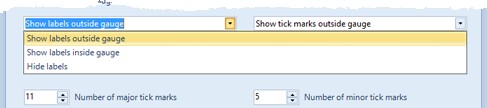

Next, if your gauge object supports labels, choose whether you want the labels for the gauge shown inside the gauge, outside the gauge or not shown at all.

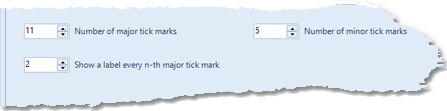

If your gauge object supports tick marks choose whether tick marks should be shown inside the gauge, outside the gauge or not at all. Next enter the number of major and minor tick marks, and the frequency of labels on the gauge.

clip761

clip762

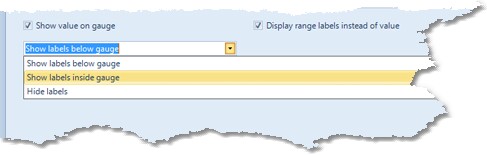

If you are defining a Traffic Light gauge you can choose to display range labels rather than the value on the gauge. You can also select whether to show the label or value below the gauge, inside the gauge or not at all.

clip763
