The System Wizard - Enter Connection Details allows you to define one or more connections to databases that the system will provide access to.

A system will only use one connection detail at any one time to access the database(s). Creating more than one connection allows the user to select an alternative connection (using the Select Connection screen) to modify the setup or run a query. For example, a user might create subjects against a test system, then run queries against a live system. In this example, we would create two connections, one for test and one for live.

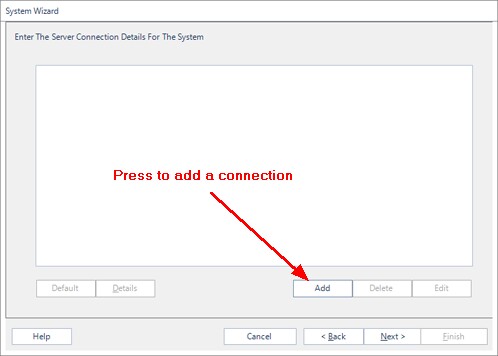

To create a new connection, press the Add button. This will open either the SQL Connection Details screen or the Progress Connection Details screen.

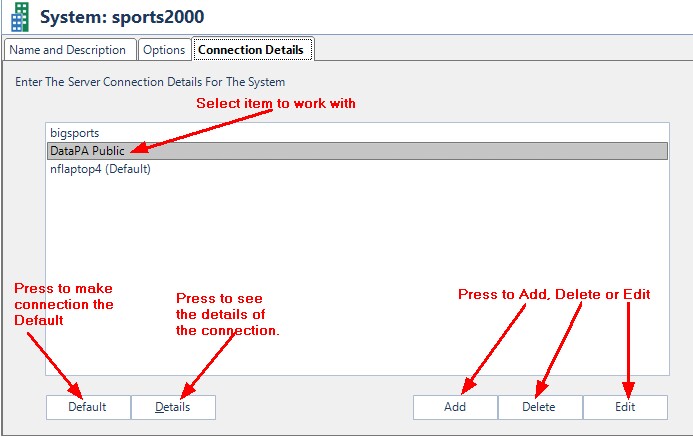

If you wish to Edit or Delete any of your Connection Details, select the Connection by clicking on it in the list view.  Then click on either the Edit button or the Delete button.  If you click on the Edit button, this will open either the SQL Connection Details screen or the Progress Connection Details screen.

To set a Connection as the default connection, select it by clicking on it in the list view, then press the Default button.

The Details button, reads data from Progress/OpenEdge connections and opens the AppServer Details screen

Once you have created your connection details click on 'Next' to proceed to the System Wizard - Finished.  If you do not wish to continue you can click on 'Cancel' at any time.
